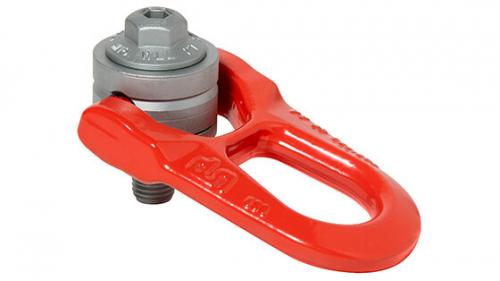

Codipro DSR Swivel Hoist Ring
★★★★⯨4.6 (81 reviews)Overview
The Codipro DSR Swivel Hoist Ring is built for industrial and material-handling work. Specifications include brand of Codipro GRADUP, finish of Zinc plated (Zn). Request a quote for bulk pricing. Freight and lead time are confirmed at checkout, and business leasing is available.
Specifications
| Brand | Codipro GRADUP |
| Type | Double swivel lifting ring - 360 degree rotation, 180 degree pivot, swivels under load |
| Standard | Complies with Machinery Directive 2006/42/CE; manufactured to EN 1677-1 |
| Finish | Zinc plated (Zn) |
| Traceability | Individual traceability number |
| Safety-factor basis | WLL values here are Codipro's PUBLISHED figures (5:1 reference basis), NOT the tonnage encoded in the part name, which is a 4:1 nominal. e.g. SEB "M 24 3t8" publishes 3.20 t (7,055 lb), not 3.8 t; "M 20 3t2" publishes 2.90 t, not 3.2 t. A WLL that matches the part-name tonnage is quoting the wrong basis. Stainless is derated vs standard steel at equal size (SS.DSR M24 2.70 t vs DSR 4.40 t) — never cross-apply. |
| Brand | Codipro |
| Shipping | Free · freight ETA at checkout |
Specifications by size
Manufacturer-published figures for each of the 25 sizes in this range.
Show all 25 sizes
- WLL (Safety Factor 5:1):
- 882 lb (0.40 t metric)
- WLL (Safety Factor 4:1):
- 1,102 lb (0.50 t metric)
- Tightening Torque:
- 6 Nm
- WLL (Safety Factor 5:1):
- 1,543 lb (0.70 t metric)
- WLL (Safety Factor 4:1):
- 1,984 lb (0.90 t metric)
- Tightening Torque:
- 10 Nm
- WLL (Safety Factor 5:1):
- 2,315 lb (1.05 t metric)
- WLL (Safety Factor 4:1):
- 2,866 lb (1.30 t metric)
- Tightening Torque:
- 15 Nm
- WLL (Safety Factor 5:1):
- 3,086 lb (1.40 t metric)
- WLL (Safety Factor 4:1):
- 3,968 lb (1.80 t metric)
- Tightening Torque:
- 30 Nm
- WLL (Safety Factor 5:1):
- 4,409 lb (2.00 t metric)
- WLL (Safety Factor 4:1):
- 5,071 lb (2.30 t metric)
- Tightening Torque:
- 50 Nm
- WLL (Safety Factor 5:1):
- 5,071 lb (2.30 t metric)
- WLL (Safety Factor 4:1):
- 5,071 lb (2.30 t metric)
- Tightening Torque:
- 70 Nm
- WLL (Safety Factor 5:1):
- 5,512 lb (2.50 t metric)
- WLL (Safety Factor 4:1):
- 5,512 lb (2.50 t metric)
- Tightening Torque:
- 100 Nm
- WLL (Safety Factor 5:1):
- 6,393 lb (2.90 t metric)
- WLL (Safety Factor 4:1):
- 7,055 lb (3.20 t metric)
- Tightening Torque:
- 100 Nm
- WLL (Safety Factor 5:1):
- 7,716 lb (3.50 t metric)
- WLL (Safety Factor 4:1):
- 9,921 lb (4.50 t metric)
- Tightening Torque:
- 120 Nm
- WLL (Safety Factor 5:1):
- 9,700 lb (4.40 t metric)
- WLL (Safety Factor 4:1):
- 12,125 lb (5.50 t metric)
- Tightening Torque:
- 160 Nm
- WLL (Safety Factor 5:1):
- 12,566 lb (5.70 t metric)
- WLL (Safety Factor 4:1):
- 13,228 lb (6.00 t metric)
- Tightening Torque:
- 200 Nm
- WLL (Safety Factor 5:1):
- 13,228 lb (6.00 t metric)
- WLL (Safety Factor 4:1):
- 13,889 lb (6.30 t metric)
- Tightening Torque:
- 250 Nm
- WLL (Safety Factor 5:1):
- 14,771 lb (6.70 t metric)
- WLL (Safety Factor 4:1):
- 17,637 lb (8.00 t metric)
- Tightening Torque:
- 250 Nm
- WLL (Safety Factor 5:1):
- 17,637 lb (8.00 t metric)
- WLL (Safety Factor 4:1):
- 18,739 lb (8.50 t metric)
- Tightening Torque:
- 320 Nm
- WLL (Safety Factor 5:1):
- 18,739 lb (8.50 t metric)
- WLL (Safety Factor 4:1):
- 19,842 lb (9.00 t metric)
- Tightening Torque:
- 400 Nm
- WLL (Safety Factor 5:1):
- 330 lb
- WLL (Safety Factor 4:1):
- 450 lb
- Tightening Torque:
- 3 ft-lb
- WLL (Safety Factor 5:1):
- 1,000 lb
- WLL (Safety Factor 4:1):
- 1,200 lb
- Tightening Torque:
- 5 ft-lb
- WLL (Safety Factor 5:1):
- 1,300 lb
- WLL (Safety Factor 4:1):
- 1,600 lb
- Tightening Torque:
- 8 ft-lb
- WLL (Safety Factor 5:1):
- 2,400 lb
- WLL (Safety Factor 4:1):
- 2,800 lb
- Tightening Torque:
- 12 ft-lb
- WLL (Safety Factor 5:1):
- 3,900 lb
- WLL (Safety Factor 4:1):
- 4,900 lb
- Tightening Torque:
- 40 ft-lb
- WLL (Safety Factor 5:1):
- 5,250 lb
- WLL (Safety Factor 4:1):
- 5,250 lb
- Tightening Torque:
- 80 ft-lb
- WLL (Safety Factor 5:1):
- 7,900 lb
- WLL (Safety Factor 4:1):
- 9,800 lb
- Tightening Torque:
- 90 ft-lb
- WLL (Safety Factor 5:1):
- 11,200 lb
- WLL (Safety Factor 4:1):
- 12,500 lb
- Tightening Torque:
- 125 ft-lb
- WLL (Safety Factor 5:1):
- 11,500 lb
- WLL (Safety Factor 4:1):
- 13,000 lb
- Tightening Torque:
- 160 ft-lb
- WLL (Safety Factor 5:1):
- 13,500 lb
- WLL (Safety Factor 4:1):
- 13,500 lb
- Tightening Torque:
- 200 ft-lb
