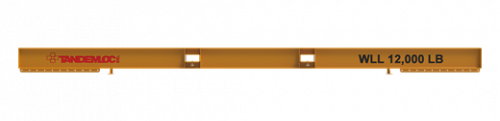

Tandemloc Forklift Spreader Bar with Multiple Padeyes
★★★★⯨4.9 (89 reviews)- 12,000 lb WLL, proof tested to 15,000 lb and certified
- Padeyes on 6 in centers along the bottom chord
- Pull-to-pull length adjusts 240–360 in
- Meets or exceeds ASME B30.20; made in USA
Overview
This Tandemloc spreader bar rides on forklift tines and turns the truck into a multi-point pick. A row of padeyes along the bottom chord takes shackles and slings at 6 in centers, so long or unevenly loaded material rigs level from the forks without calling in a crane. Fork pockets lock to the tines with hand wheels.
Working load limit is 12,000 lb, proof tested to 125% (15,000 lb) and certified, built to Tandemloc's EAD21000A specification and designed to meet or exceed ASME B30.20. Pull-to-pull length adjusts from 240 to 360 in. The bar is sandblasted, primed, and painted safety yellow, and fixed stands support it in storage. Calculated weight including sling is 1,864 lb.
Tandemloc fabricates the bar in Havelock, North Carolina, and will customize working load, length, tine pocket size, and pick-point count on request. It ships by freight. Pricing is quote-based; confirm your carriage width, tine dimensions, freight, and lead time when you request the quote. Shackles are sized to the load at order, and business leasing is available.
Key features
- 12,000 lb WLL, proof tested to 125% (15,000 lb) with certification
- Bottom padeyes at 6 in increments for multi-point rigging
- Telescoping pull-to-pull length, 240 to 360 in
- Hand wheels secure the fork pockets to the tines
- Built to Tandemloc specification EAD21000A; meets or exceeds ASME B30.20
- Sandblasted, primed, and painted safety yellow; storage stands included
- Made in USA; custom capacities, lengths, and pocket sizes on request
Specifications
| Capacity | 12,000 lb |
| Brand | Tandemloc |
| Shipping | Free · freight ETA at checkout |
