Vestil Telescoping Forklift Boom
★★★★⯨4.7 (30 reviews)- 3,000–8,000 lb models; rating derates with reach
- 750–2,200 lb by model at full 144 in hook position
- Telescoping boom, load rated at 36–144 in positions
- Welded structural steel, swivel hook + safety chain
Overview

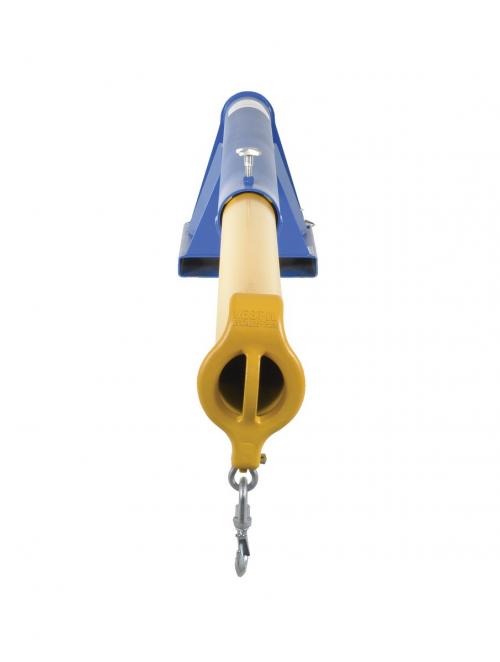

The Vestil LM-1T Lift Master slides onto the forks of a counterbalanced fork truck and turns it into a mobile crane for suspended loads: machinery, bundles, baskets, anything that rigs from a hook rather than rides on a pallet. Per Vestil's manual it is for vertical-mast, high-lift fork trucks only: not telehandlers, not rough-terrain trucks.
Each of the four models (3,000, 4,000, 6,000, 8,000 lb) is rated by a load table, not a single number: capacity falls as the boom telescopes out, from full rating at the 36 in hook position down to 750 lb (3,000 lb model) or 2,200 lb (8,000 lb model) at 144 in. An X-handle locking bolt sets the extension; the load hangs from a swivel hook and shackle, and a 5/16 in × 36 in safety chain keeps the boom from sliding off the forks.
Eleven configurations pair the four capacities with 11, 24, 30, or 36 in fork pocket centers; order the pocket spacing that matches your truck's fork spread. Vestil's sizing rule: the fork truck must be rated for at least 125% of the boom's capacity plus the boom's own weight. Ships by freight; each unit arrives with hook, shackle, and safety chain installed.
Key features
- Load-table rated: 8,000 lb model carries 8,000 lb at the 36 in hook position, 2,200 lb at 144 in — every model derates with extension
- Load ratings tabulated at 12 in increments from 36 in to 144 in hook positions
- Welded structural steel construction, blue/yellow powder-coat finish
- 2-ton or 3-ton swivel load hook with shackle, sized to the model
- 5/16 in × 36 in safety chain keeps the boom on the forks (restraint only, not load-bearing)
- Fork pocket centers: 11, 24, 30, or 36 in, matched at order to your fork spread
- For vertical-mast high-lift fork trucks only, not telehandlers or rough-terrain trucks
- Pair with a truck rated ≥125% of boom capacity plus boom weight (per Vestil manual)
Specifications
| Capacity | up to 8,000 lb — derates to 750 lb; see load rating table |
| Load Rating Basis | Varies by hook position along the boom |
| Load Rating — 3,000 lb model (LM-1T-3) | 3,000 / 2,750 / 2,500 / 2,250 / 2,000 / 1,750 / 1,500 / 1,250 / 1,000 / 750 lb when hook is at 36" / 48" / 60" / 72" / 84" / 96" / 108" / 120" / 132" / 144" from end of boom |
| Load Rating — 4,000 lb model (LM-1T-4k) | 4,000 / 3,750 / 3,500 / 3,250 / 3,000 / 2,750 / 2,500 / 2,250 / 2,000 / 1,750 lb when hook is at 36" / 48" / 60" / 72" / 84" / 96" / 108" / 120" / 132" / 144" from end of boom |
| Load Rating — 6,000 lb model (LM-1T-6k) | 6,000 / 5,000 / 4,500 / 4,000 / 3,500 / 3,000 / 2,600 / 2,300 / 2,000 / 1,800 lb when hook is at 36" / 48" / 60" / 72" / 84" / 96" / 108" / 120" / 132" / 144" from end of boom |
| Load Rating — 8,000 lb model (LM-1T-8k) | 8,000 / 6,650 / 6,000 / 5,300 / 4,650 / 4,000 / 3,500 / 3,000 / 2,600 / 2,200 lb when hook is at 36" / 48" / 60" / 72" / 84" / 96" / 108" / 120" / 132" / 144" from end of boom |
| Brand | Vestil |
| Shipping | Free · freight ETA at checkout |
