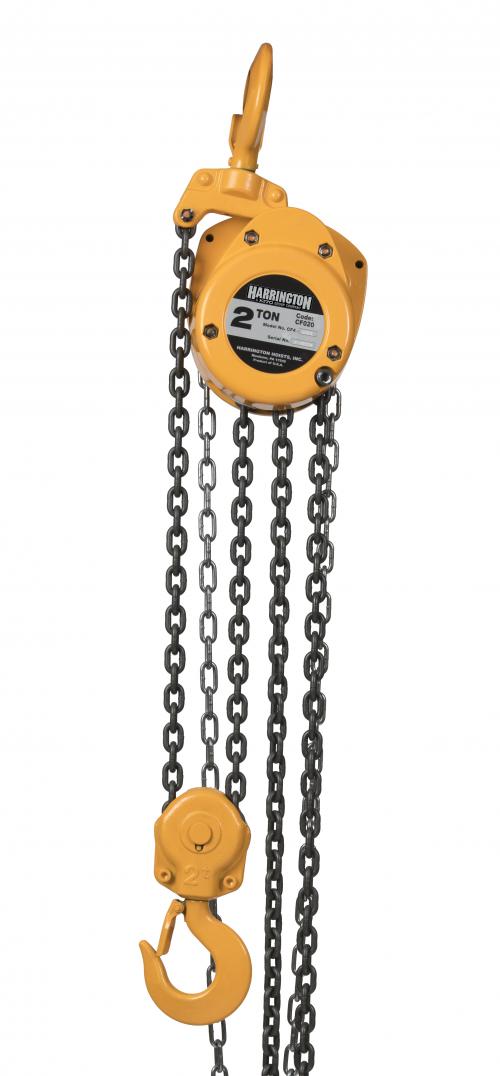

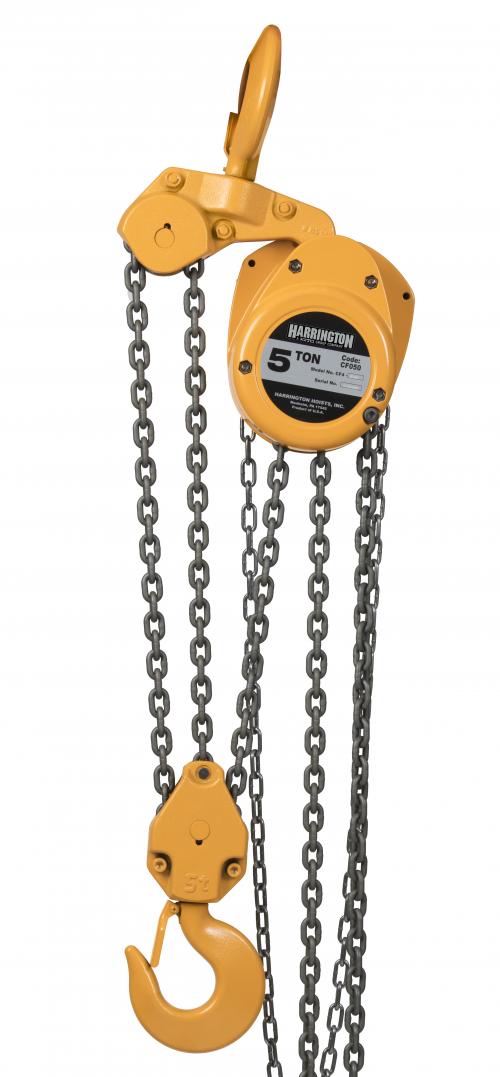

Harrington CF Hand Chain Hoist
★★★★⯨4.5 (61 reviews)Overview
The Harrington Hoists Harrington CF Hand Chain Hoist is built for industrial and material-handling work. Request a quote for bulk pricing. Freight and lead time are confirmed at checkout, and business leasing is available.
Specifications
| chain_type | Hand chain hoist (manual, load-chain type – NOT wire rope); die-cast aluminum body (lighter economy alternative to the all-steel CB) |
| capacity_range | 1/2 through 5 Ton (CF line tops out at 5 Ton per catalog – matches full sku range exactly, no higher classes offered) |
| rating_unit | US short tons (2,000 lb/ton) – Imperial chart is the primary catalog rating; separate Metric Data Chart gives kg conversions for export only – no metric-nameplate conversion needed |
| standard_lift_options | 10 ft is the standard lift; 15 ft and 20 ft are also stocked standard options per Harrington's Manual Hoist Catalog ('10-foot lift is standard, 15- and 20-foot lifts are also stocked') – confirms all three lift lengths in the sku list are genuine standard options |
| Brand | Harrington Hoists |
| Shipping | Free · freight ETA at checkout |
Specifications by size
Manufacturer-published figures for each of the 18 sizes in this range.
Show all 18 sizes
- product_code:
- CF005
- capacity_lbs:
- 1000
- headroom_in:
- 12.8
- pull_force_to_lift_rated_load_lbs:
- 60
- overhaul_ratio:
- 19
- product_code:
- CF005
- capacity_lbs:
- 1000
- headroom_in:
- 12.8
- pull_force_to_lift_rated_load_lbs:
- 60
- overhaul_ratio:
- 19
- product_code:
- CF005
- capacity_lbs:
- 1000
- headroom_in:
- 12.8
- pull_force_to_lift_rated_load_lbs:
- 60
- overhaul_ratio:
- 19
- product_code:
- CF010
- capacity_lbs:
- 2000
- headroom_in:
- 14.6
- pull_force_to_lift_rated_load_lbs:
- 72
- overhaul_ratio:
- 31
- product_code:
- CF010
- capacity_lbs:
- 2000
- headroom_in:
- 14.6
- pull_force_to_lift_rated_load_lbs:
- 72
- overhaul_ratio:
- 31
- product_code:
- CF010
- capacity_lbs:
- 2000
- headroom_in:
- 14.6
- pull_force_to_lift_rated_load_lbs:
- 72
- overhaul_ratio:
- 31
- product_code:
- CF015
- capacity_lbs:
- 3000
- headroom_in:
- 17.3
- pull_force_to_lift_rated_load_lbs:
- 84
- overhaul_ratio:
- 41
- product_code:
- CF015
- capacity_lbs:
- 3000
- headroom_in:
- 17.3
- pull_force_to_lift_rated_load_lbs:
- 84
- overhaul_ratio:
- 41
- product_code:
- CF015
- capacity_lbs:
- 3000
- headroom_in:
- 17.3
- pull_force_to_lift_rated_load_lbs:
- 84
- overhaul_ratio:
- 41
- product_code:
- CF020
- capacity_lbs:
- 4000
- headroom_in:
- 20.1
- pull_force_to_lift_rated_load_lbs:
- 80
- overhaul_ratio:
- 63
- product_code:
- CF020
- capacity_lbs:
- 4000
- headroom_in:
- 20.1
- pull_force_to_lift_rated_load_lbs:
- 80
- overhaul_ratio:
- 63
- product_code:
- CF020
- capacity_lbs:
- 4000
- headroom_in:
- 20.1
- pull_force_to_lift_rated_load_lbs:
- 80
- overhaul_ratio:
- 63
- product_code:
- CF030
- capacity_lbs:
- 6000
- headroom_in:
- 23.2
- pull_force_to_lift_rated_load_lbs:
- 92
- overhaul_ratio:
- 81
- product_code:
- CF030
- capacity_lbs:
- 6000
- headroom_in:
- 23.2
- pull_force_to_lift_rated_load_lbs:
- 92
- overhaul_ratio:
- 81
- product_code:
- CF030
- capacity_lbs:
- 6000
- headroom_in:
- 23.2
- pull_force_to_lift_rated_load_lbs:
- 92
- overhaul_ratio:
- 81
- product_code:
- CF050
- capacity_lbs:
- 10000
- headroom_in:
- 24.4
- pull_force_to_lift_rated_load_lbs:
- 92
- overhaul_ratio:
- 134
- product_code:
- CF050
- capacity_lbs:
- 10000
- headroom_in:
- 24.4
- pull_force_to_lift_rated_load_lbs:
- 92
- overhaul_ratio:
- 134
- product_code:
- CF050
- capacity_lbs:
- 10000
- headroom_in:
- 24.4
- pull_force_to_lift_rated_load_lbs:
- 92
- overhaul_ratio:
- 134
