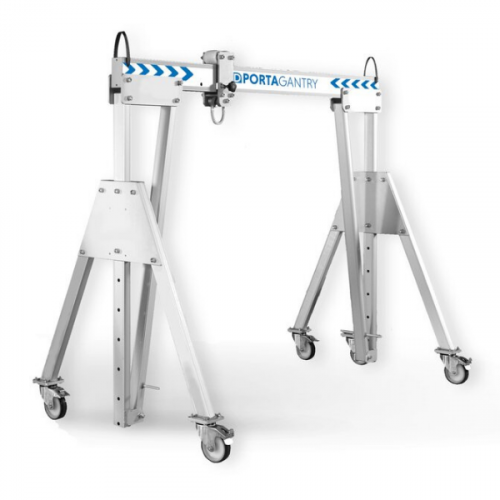

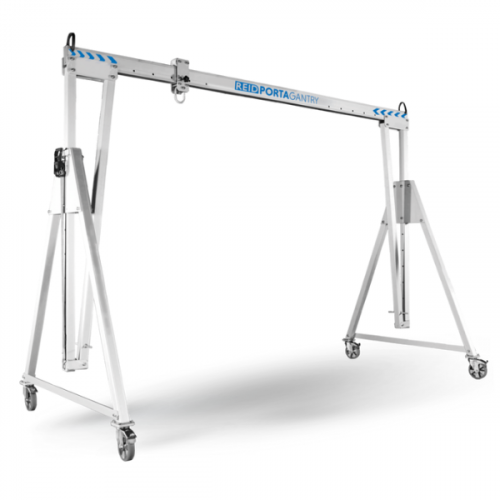

REID Lifting 11000lbs PORTA-GANTRY® Mobile Gantry System
★★★★⯨4.8 (39 reviews)- 11,000 lb goods rating; 5,500 lb personnel rating
- Tall A-frames adjust 9 ft 4 in to 13 ft 3 in eye height
- 15 ft or 18 ft beam; anodized aluminum construction
- OSHA compliant; ANSI Z359.18-17 for fall protection
Overview
The 11,000 lb PORTA-GANTRY is the largest frame in REID's portable aluminum gantry system: two A-frames and a beam that bolt together into an overhead lift point where no building steel exists. REID rates it at 11,000 lb for goods and 5,500 lb for personnel work, which puts pump-well service, plant maintenance, and confined-space access on one system instead of three.
Anodized aluminum keeps the sections manageable and resists corrosion; assembly takes four bolts and no crane. The gantry rolls on 360-degree swivel-locking castors and, subject to REID's competent-person instruction, can be moved under load. It is OSHA compliant and ANSI Z359.18-17 compliant for fall protection, rated for up to three attached users. Beams and A-frames interchange across the PORTA-GANTRY range.
This listing pairs the tall A-frame set, adjustable from 9 ft 4 in to 13 ft 3 in, with a 15 ft or 18 ft beam. A master link or gated master link trolley is optional; the hoist is sold separately. Pricing is quote-based; freight, lead time, and your exact configuration are confirmed at quote, and business leasing is available.
Key features
- Rated 11,000 lb goods and 5,500 lb personnel; fall arrest for up to 3 users
- Anodized aluminum A-frames and beam; four-bolt manual assembly
- 360-degree swivel-locking castors standard
- Can be moved under load, subject to competent-person instruction per REID
- Tall A-frame pair adjusts from 9 ft 4 in to 13 ft 3 in
- Optional master link trolley or gated master link trolley
- Beams and A-frames interchange across the PORTA-GANTRY system
Specifications
| Overall Length | 15-18 ft |
| Capacity | 11000 lb |
| Type | Portable mobile gantry |
| Brand | REID Lifting |
| Shipping | Free · freight ETA at checkout |
