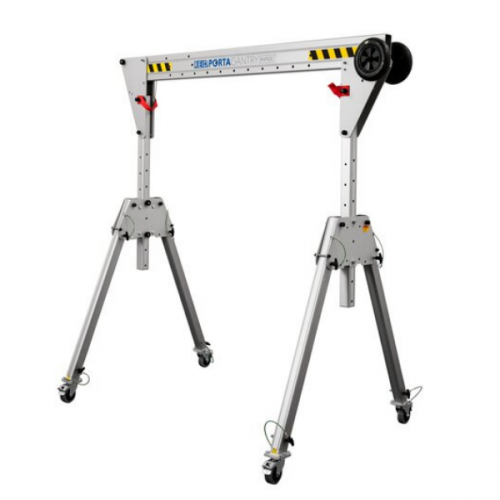

REID Lifting Porta-Gantry Rapide® Foldable Mobile Gantry
★★★★⯨4.7 (49 reviews)Overview
The PORTA-GANTRY RAPIDE is REID's folding aluminum gantry: a frame that one person unfolds and assembles in under a minute without tools, rolls to the load on integrated wheels, and folds flat again for the truck bed or storeroom. It is built for jobs that move, including pump stations, lift shafts, valve pits, and plant maintenance rounds.
Goods capacity is 880, 1,100, or 2,200 lb by model, with personnel lifting up to 1,100 lb and two-user fall arrest on the largest frame. Anodized aluminum resists corrosion, A-frames adjust to a 9.5 ft lifting eye height, and beams run up to 13 ft. The system is OSHA compliant and ANSI Z359.18-17 compliant for fall protection.
Pick the capacity, A-frame height range, and beam length in the option list; a master link trolley is optional on every combination, and the hoist or fall-arrest device is sold separately. Pricing is quote-based; configuration, freight, and lead time are confirmed at quote, and business leasing is available.
Key features
- Tool-free assembly by one person in under a minute, per REID
- Folds flat for transport; wheels fold with the frame
- Three capacities: 880, 1,100, and 2,200 lb goods lifting
- Personnel lifting to 1,100 lb; fall arrest for up to 2 users on the largest model
- Anodized aluminum construction for corrosion resistance
- A-frame heights to 9.5 ft lifting eye; beam lengths to 13 ft
- OSHA compliant; ANSI Z359.18-17 compliant for fall protection
- Optional master link trolley; winch-ready for lowering and rescue
Specifications
| Capacity | 880-2,200 lb |
| Type | Foldable portable aluminum gantry |
| Brand | REID Lifting |
| Shipping | Free · freight ETA at checkout |
