Vestil Adjustable Gantry Crane 10ft Span, 2000lb
★★★★⯨4.5 (14 reviews)- 2,000 lb capacity; 10 ft span
- Maximum height 12, 14, or 16 ft by model
- Welded steel; four-position locking swivel casters
- Complies with applicable CMAA and ANSI specifications
Overview
The AHS-2-10 is a 2,000 lb welded steel gantry crane with a 10 ft span and an adjustable beam height, built for semi-permanent or permanent bays where the hook height needs to match the work, not the other way around. A trolley and hoist ride the I-beam to move loads along the span.
Three models set the maximum usable height at 12, 14, or 16 ft; per Vestil, height changes require assistance from a fork truck, so plan adjustments as setup work rather than mid-shift moves. The crane rolls on four glass-filled nylon swivel casters that lock in four positions, and the powder-coated steel frame weighs 712 to 812 lb by model. All models comply with applicable CMAA and ANSI specifications.
Pick the 12, 14, or 16 ft model in the option list. Hoists and trolleys are ordered separately, so include yours in the quote to match beam and capacity. The crane ships by freight; pricing is quote-based, freight and lead time are confirmed at quote, and business leasing is available.
Key features
- 2,000 lb capacity on a 10 ft span
- Three height models: 12, 14, and 16 ft maximum usable height
- Height adjustment requires fork truck assistance, per Vestil
- Heavy-duty welded steel construction, powder-coated finish

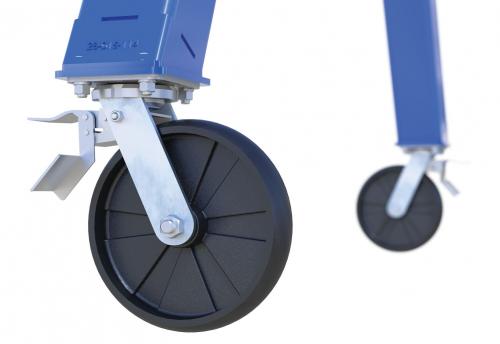

- Glass-filled nylon casters; four-position locking swivels
- Complies with applicable CMAA and ANSI specifications
- Hoists and trolleys ordered separately
Specifications
| Lift Height | 12-16 ft |
| Capacity | 2000 lb |
| Span/Height | 10 ft |
| Type | Portable mobile gantry |
| Brand | Vestil |
| Shipping | Free · freight ETA at checkout |
