Vestil Gantry Crane 10ft Height, 4000lbs
★★★★⯨4.8 (44 reviews)- 4,000 lb capacity at every offered span
- 10 ft under-beam height; 10, 15, or 20 ft span
- Welded steel; multi-position locking swivel casters
- OSHA 29 CFR 1910.179, ASME B30.17, ANSI Z535.4
Overview

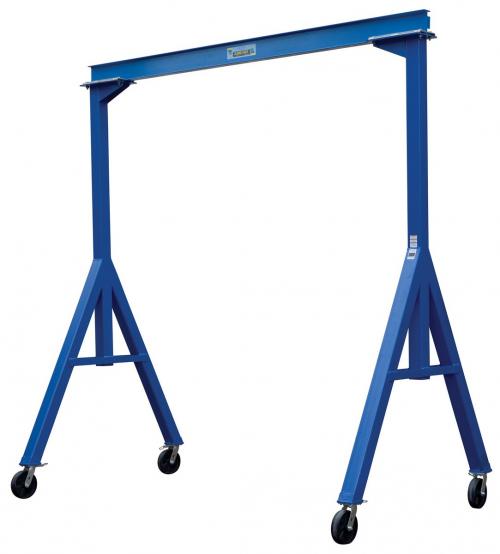

The FHS-4 is a fixed-height steel gantry crane: two A-frame legs, a 10 ft under-beam height, and an I-beam that carries a trolley and hoist across the span. It puts overhead lifting over machinery, dies, and truck beds in shops that do not have building steel to hang a crane from.
Capacity is 4,000 lb, and Vestil holds that rating at each offered span: the 10, 15, and 20 ft models all carry 4,000 lb. Construction is heavy-duty welded steel with a powder-coated finish, on swivel casters with multi-position locking so the crane parks square. Frames weigh about 625 lb. Referenced standards are OSHA 29 CFR 1910.179, ASME B30.17, and ANSI Z535.4.
Fixed height suits a bay with constant clearance; if you need the beam to move up and down between jobs, the adjustable AHS series is listed separately. Choose the 10, 15, or 20 ft span in the option list. Hoists and trolleys are ordered separately. Pricing is quote-based; freight and lead time are confirmed at quote, and business leasing is available.
Key features
- 4,000 lb capacity, held across the 10, 15, and 20 ft span options
- Fixed 10 ft under-beam height
- Heavy-duty welded steel construction, powder-coated finish
- Swivel casters with multi-position locking
- Referenced standards: OSHA 29 CFR 1910.179, ASME B30.17, ANSI Z535.4
- Hoists and trolleys ordered separately
- Approximately 625 lb frame weight by span
Specifications
| Span | 10-20 ft |
| Capacity | 4000 lb |
| Span/Height | 10 ft |
| Type | Portable mobile gantry |
| Brand | Vestil |
| Shipping | Free · freight ETA at checkout |
