Vestil Gantry Crane 10ft Height, 2000lbs
★★★★★4.4 (74 reviews)- 2,000 lb capacity at every offered span
- 10 ft under-beam height; 10, 15, or 20 ft span
- Welded steel; multi-position locking swivel casters
- OSHA 29 CFR 1910.179, ASME B30.17, ANSI Z535.4
Overview

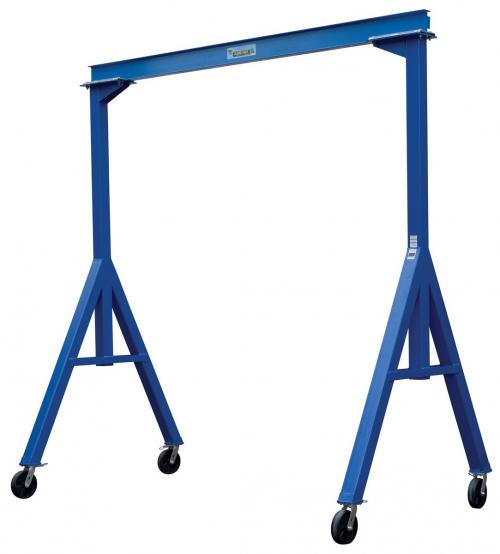

The FHS-2 is Vestil's 2,000 lb fixed-height steel gantry crane: A-frame legs, a 10 ft under-beam height, and an I-beam for a trolley and hoist. It gives a shop overhead lifting over benches, machinery, and truck beds without permanent building steel, and rolls between bays on its casters.
The 2,000 lb rating holds at each offered span; Vestil lists the 10, 15, and 20 ft models at the same capacity. Frames are heavy-duty welded steel, powder-coated, and weigh 621 to 627 lb by span, on swivel casters with multi-position locking. Referenced standards are OSHA 29 CFR 1910.179, ASME B30.17, and ANSI Z535.4.
Fixed height keeps the crane simple where clearance never changes; the adjustable AHS series covers bays that need hook-height changes. Choose the 10, 15, or 20 ft span in the option list. Hoists and trolleys are ordered separately. Pricing is quote-based; freight and lead time are confirmed at quote, and business leasing is available.
Key features
- 2,000 lb capacity, held across the 10, 15, and 20 ft span options
- Fixed 10 ft under-beam height
- Heavy-duty welded steel construction, powder-coated finish
- Swivel casters with multi-position locking
- Referenced standards: OSHA 29 CFR 1910.179, ASME B30.17, ANSI Z535.4
- Hoists and trolleys ordered separately
- 621 to 627 lb frame weight by span
Specifications
| Span | 10-20 ft |
| Capacity | 2000 lb |
| Span/Height | 10 ft |
| Type | Portable mobile gantry |
| Brand | Vestil |
| Shipping | Free · freight ETA at checkout |
